2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces

Name: 2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces
Brand: Hightop
Price: 1 USD

China 2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces wholesale

Supply Ability : 100 set per month

Boom angle/time : 0-78°/13sec

Brand Name : Hightop

Model Number : HTSC2.0

Maximum operating radius : 6m

Certification : CE，EPA，ISO，TUV

Maximum above ground lift : 6.5m

Price : Negotiation

Packaging Details : Wooden case

Boom form : 2m x 4-section boom (customizable)

MOQ : 1 set

Wire Rope Specifications : Φ8mm×45m

Payment Terms : L/C,D/P,D/A,T/T

Boom length/time : 6.5m/20sec （Support customization）

Delivery Time : 5-14 work days

Rotation angle/speed : 0-360° (continuous)/60sec

Place of Origin : China

Hook Rising Speed : 0-8m/min(4 ropes)

Contact Now

2 Tons Crawler Spider Crane Basic

Product Overview

This compact crawler spider crane features a small size, light weight, and compact structure, making it ideal for confined spaces such as floor roof lifting and substation maintenance.

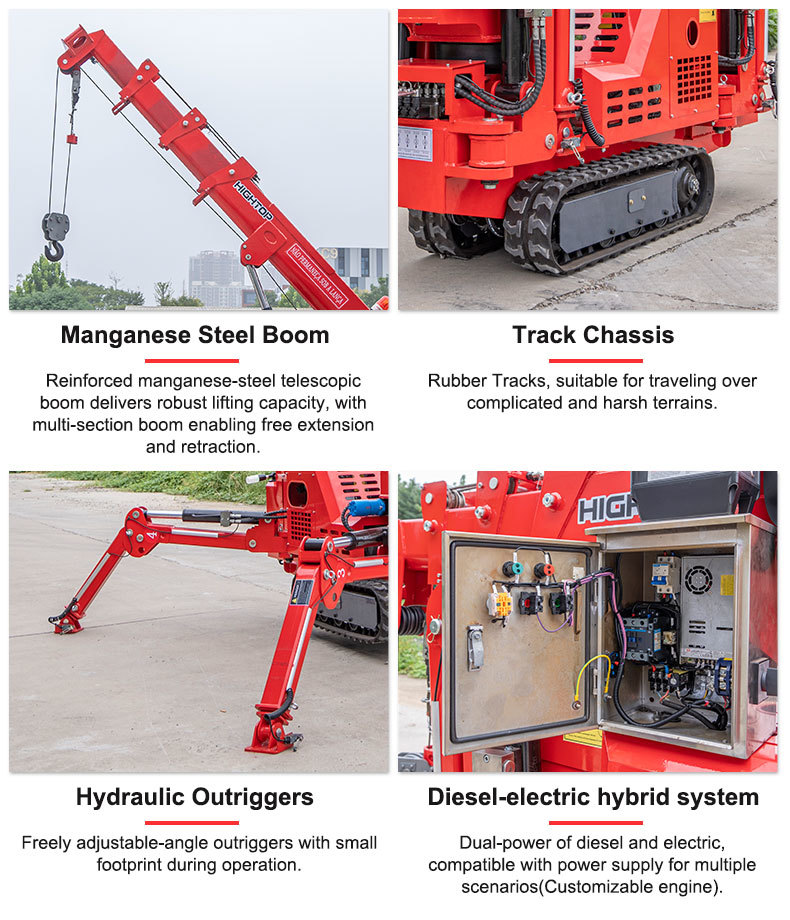

Rubber tracked chassis prevents ground damage and adapts to various surfaces
High-strength manganese steel boom for superior lifting capacity
Optional remote control for convenient operation

Technical Specifications

Parameter	Specification
Capacity	2T
Maximum Operating Radius	6m
Maximum Above Ground Lift	6.5m

Winches

Parameter	Specification
Hook Rising Speed (4 ropes)	0-8m/min
Wire Rope Specifications	Φ8mm*45m

Telescopic Boom

Parameter	Specification
Boom Form	2m x 4-section boom (customizable)
Boom Length/Time	6.5m/20sec (Support customization)

Luffing Device

Parameter	Specification
Boom Angle/Time	0-78°/13sec

Cyclotron

Parameter	Specification
Rotation Angle/Speed	0-360° (continuous)/60sec

Outrigger

Parameter	Specification
Forms of Outrigger Movement	Manual screw-out + hydraulic automatic support (three-section legs retractable)
Maximum Extension Amplitude	3620 (length) X3440 (rear) X3470 (front) mm

Running Gear

Parameter	Specification
Walking Mode	Hydraulic drive
Walking Speed	0-2.5km/h
Gradeability	25°(36%)
Track	180 (width) 72 (pitch) 37 (section)

Electrical System

Parameter	Specification
Voltage	AC380V

Engine

Parameter	Specification
Manufacturer	Honda (customizable/optional for other brands)
Model Number	390CC
Start Mode	Electric start/manual
Start Performance	-50°C-45°C
Fuel/Volume	Gasoline/8L
Battery Capacity	12V60AH
Fuel Consumption Rate	274g/kW-h
Noise Level	Rated speed ≤ 81.5dBA (1m)

Operation

Parameter	Specification
Type of Operation (boom/outrigger)	Manual operation, manual travel (optional remote control operation)
Operational Mode	Manual operation (remote operation optional)

Physical Dimensions

Parameter	Specification
Vehicle Size	2.78m length, 0.71m width, 1.62m height
Self-weight	1.8T

Standard Configuration & Options

Standard Configuration: Gasoline engines can be replaced with diesel engines

Optional Accessories: Torque controller, remote control, cradle, hydraulic flying jib

Available Colors: Red, green, yellow, white, grey, black

Product Images

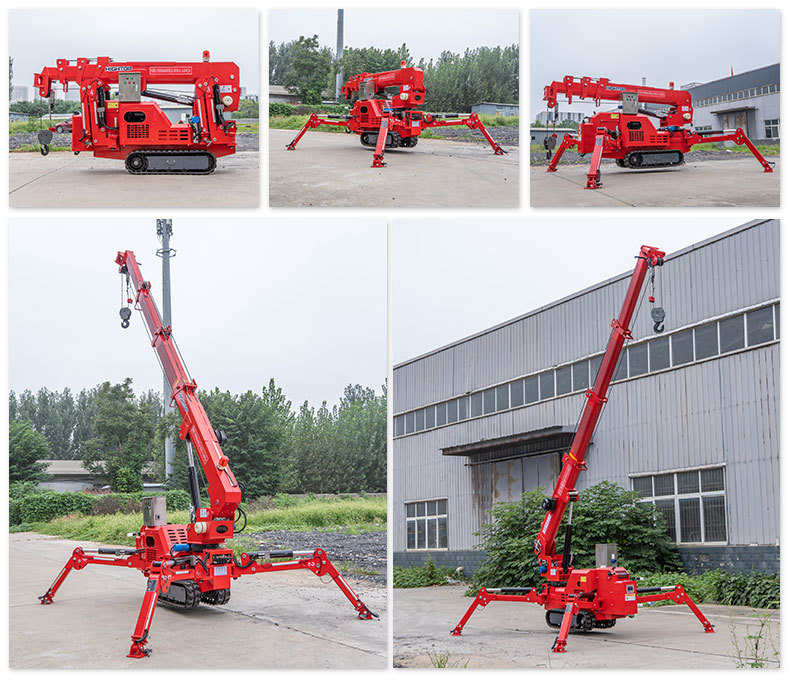

2 Tons Spider Crawler Crane With Rubber Tracked Chassis For Small Spaces
